SpringBoot整合kaptcha生成登录验证码

41451 框架 | 2021-3-23

Kaptcha 是一个可高度配置的实用验证码生成工具,可自由配置的选项如:

验证码的字体

验证码字体的大小

验证码字体的字体颜色

验证码内容的范围(数字,字母,中文汉字!)

验证码图片的大小,边框,边框粗细,边框颜色

验证码的干扰线

验证码的样式(鱼眼样式、3D、普通模糊、...)



Maven引入kaptcha:

<!-- google验证码 -->
<dependency>
	<groupId>com.github.penggle</groupId>
	<artifactId>kaptcha</artifactId>
	<version>2.3.2</version>
</dependency>


首先是通过编码指定验证码生成的一些规则

package com.example.demo.kaptcha;

import com.google.code.kaptcha.impl.DefaultKaptcha;
import com.google.code.kaptcha.util.Config;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.Properties;

/*
 * 验证码生成配置类
 */
@Configuration
public class KaptchaConfig {

	@Bean(name = "captchaProducer")
	public DefaultKaptcha getKaptchaBean() {
		DefaultKaptcha defaultKaptcha = new DefaultKaptcha();
		Properties properties = new Properties();
		properties.setProperty("kaptcha.border", "yes");
		properties.setProperty("kaptcha.border.color", "105,179,90");
		properties.setProperty("kaptcha.textproducer.font.color", "blue");
		properties.setProperty("kaptcha.image.width", "160");
		properties.setProperty("kaptcha.image.height", "60");
		properties.setProperty("kaptcha.textproducer.font.size", "28");
		properties.setProperty("kaptcha.session.key", "kaptchaCode");
		properties.setProperty("kaptcha.textproducer.char.spac", "35");
		properties.setProperty("kaptcha.textproducer.char.length", "5");
		properties.setProperty("kaptcha.textproducer.font.names", "Arial,Courier");
		properties.setProperty("kaptcha.noise.color", "white");
		Config config = new Config(properties);
		defaultKaptcha.setConfig(config);
		return defaultKaptcha;
	}

	@Bean(name = "captchaProducerMath")
	public DefaultKaptcha getKaptchaBeanMath() {
		DefaultKaptcha defaultKaptcha = new DefaultKaptcha();
		Properties properties = new Properties();
		properties.setProperty("kaptcha.border", "yes");
		properties.setProperty("kaptcha.border.color", "105,179,90");
		properties.setProperty("kaptcha.textproducer.font.color", "blue");
		properties.setProperty("kaptcha.image.width", "100");
		properties.setProperty("kaptcha.image.height", "30");
		properties.setProperty("kaptcha.textproducer.font.size", "30");
		properties.setProperty("kaptcha.session.key", "kaptchaCodeMath");
		properties.setProperty("kaptcha.textproducer.impl", "com.lhf.springboot.support.KaptchaTextCreator");
		properties.setProperty("kaptcha.textproducer.char.spac", "5");
		properties.setProperty("kaptcha.textproducer.char.length", "6");
		properties.setProperty("kaptcha.textproducer.font.names", "Arial,Courier");
		properties.setProperty("kaptcha.noise.color", "white");
		properties.setProperty("kaptcha.noise.impl", "com.google.code.kaptcha.impl.NoNoise");
		properties.setProperty("kaptcha.obscurificator.impl", "com.google.code.kaptcha.impl.ShadowGimpy");
		Config config = new Config(properties);
		defaultKaptcha.setConfig(config);
		return defaultKaptcha;
	}
}

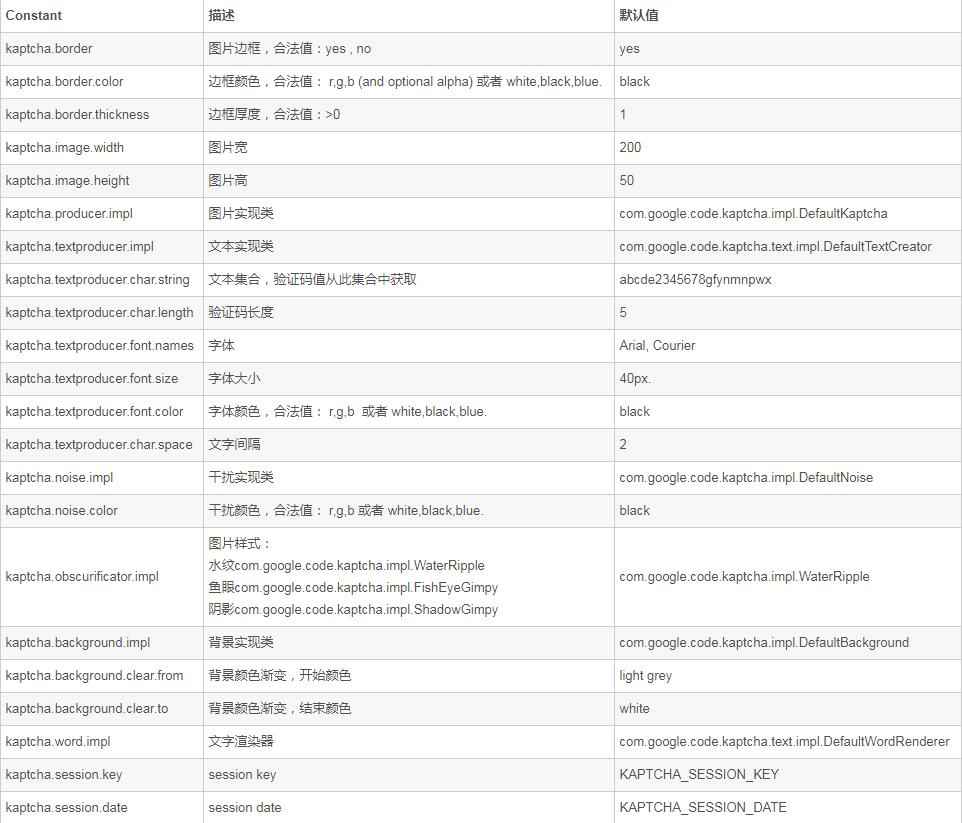

参数解释如下表格


canshu (1).jpg


编写一个数算类生成公用类

package com.example.demo.kaptcha;

import com.google.code.kaptcha.text.impl.DefaultTextCreator;

import java.util.Random;

public class KaptchaTextCreator extends DefaultTextCreator {

	private static final String[] CNUMBERS = "0,1,2,3,4,5,6,7,8,9,10".split(",");

	@Override
	public String getText() {
		Integer result = 0;
		Random random = new Random();
		int x = random.nextInt(10);
		int y = random.nextInt(10);
		StringBuilder suChinese = new StringBuilder();
		int randomoperands = (int) Math.round(Math.random() * 2);
		if (randomoperands == 0) {
			result = x * y;
			suChinese.append(CNUMBERS[x]);
			suChinese.append("*");
			suChinese.append(CNUMBERS[y]);
		} else if (randomoperands == 1) {
			if (!(x == 0) && y % x == 0) {
				result = y / x;
				suChinese.append(CNUMBERS[y]);
				suChinese.append("/");
				suChinese.append(CNUMBERS[x]);
			} else {
				result = x + y;
				suChinese.append(CNUMBERS[x]);
				suChinese.append("+");
				suChinese.append(CNUMBERS[y]);
			}
		} else if (randomoperands == 2) {
			if (x >= y) {
				result = x - y;
				suChinese.append(CNUMBERS[x]);
				suChinese.append("-");
				suChinese.append(CNUMBERS[y]);
			} else {
				result = y - x;
				suChinese.append(CNUMBERS[y]);
				suChinese.append("-");
				suChinese.append(CNUMBERS[x]);
			}
		} else {
			result = x + y;
			suChinese.append(CNUMBERS[x]);
			suChinese.append("+");
			suChinese.append(CNUMBERS[y]);
		}
		suChinese.append("=?@" + result);
		return suChinese.toString();
	}

}


编写接收验证码请求的Controller然后输出图片文件流

package com.example.demo.kaptcha;

import com.google.code.kaptcha.Constants;
import com.google.code.kaptcha.Producer;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

import javax.imageio.ImageIO;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import java.awt.image.BufferedImage;
import java.io.IOException;

/**
 * 验证码生成控制器
 */
@Controller
@Api(value = "验证码生成")
@RequestMapping("/captcha")
public class CaptchaController {

	@Autowired
	private Producer captchaProducer;

	@Autowired
	private Producer captchaProducerMath;

	/**
	 * 跳转到验证码页面
	 */
	@RequestMapping("/home")
	public String home(Model model) {
		return "img";
	}

	/**
	 * 验证码生成
	 */
	@ApiOperation(value = "生成谷歌验证码")
	@GetMapping(value = "/captchaImage")
	public ModelAndView getKaptchaImage(HttpServletRequest request, HttpServletResponse response) {
		ServletOutputStream out = null;
		try {
			HttpSession session = request.getSession();
			response.setDateHeader("Expires", 0);
			response.setHeader("Cache-Control", "no-store, no-cache, must-revalidate");
			response.addHeader("Cache-Control", "post-check=0, pre-check=0");
			response.setHeader("Pragma", "no-cache");
			response.setContentType("image/jpeg");

			String type = request.getParameter("type");
			String capStr = null;
			String code = null; // 这个就是文本框要输入的结果,为数算时这个就是计算后的结果
			BufferedImage bi = null;
			// 验证码为算数 8*9 类型
			if ("math".equals(type)) {
				String capText = new KaptchaTextCreator().getText();
				capStr = capText.substring(0, capText.lastIndexOf("@"));
				code = capText.substring(capText.lastIndexOf("@") + 1);
				bi = captchaProducerMath.createImage(capStr);
			} else if ("char".equals(type)) { // 验证码为 abcd类型
				capStr = code = captchaProducer.createText();
				bi = captchaProducer.createImage(capStr);
			}
			session.setAttribute(Constants.KAPTCHA_SESSION_KEY, code);
			out = response.getOutputStream();
			ImageIO.write(bi, "jpg", out);
			System.out.println("bi = " + bi);
			System.out.println("out =" + out);
			out.flush();

		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			try {
				if (out != null) {
					out.close();
				}
			} catch (IOException e) {
				e.printStackTrace();
			}
		}
		return null;
	}
}


页面代码如下,注意引入了百度公用JS:

<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head>
<meta charset="UTF-8">
<title>Title</title>
<script type="text/javascript" src="http://libs.baidu.com/jquery/1.9.0/jquery.min.js"></script>
</head>
<body>
<form th:action="@{/home}" method="post" id="loginForm">
<div>
<div style="width:86%;padding-left:8%;padding-top: 40px;">

<div style="float: left;width:100px; height: 40px;">
<i><img style="height:40px;" id="codeImg1" alt="点击更换"
title="点击更换" src="captcha/captchaImage?type=char" /></i>
</div>
<br />
<br />
<br />
<div style="float: left;width:100px; height: 40px;">
<i><img style="height:40px;" id="codeImg2" alt="点击更换"
title="点击更换" src="captcha/captchaImage?type=math" /></i>
</div>
</div>
</div>
</form>
<!-- 软键盘控件end -->
<script type="text/javascript">
var message = "[[${message}]]";
if ("" != message) {
layer.msg(message, {
time : 3000
})
}
$('#codeImg1').click(function() {
var url = "captcha/captchaImage?type=char&s=" + Math.random();
$("#codeImg1").attr("src", url);
});
$('#codeImg2').click(function() {
var url = "captcha/captchaImage?type=math&s=" + Math.random();
$("#codeImg2").attr("src", url);
});

function severCheck() {
$("#loginForm").submit();
}
//session获取iframe处理
$(function() {
//判断一下当前是不是做顶层,如果不是,则做一下顶层页面重定向
if (window != top) {
top.location.href = location.href;
}
});
</script>
</body>
</html>

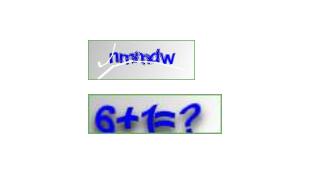

访问http://localhost:8080/home  会跳转到响应页面,这个页面会展示验证码。
